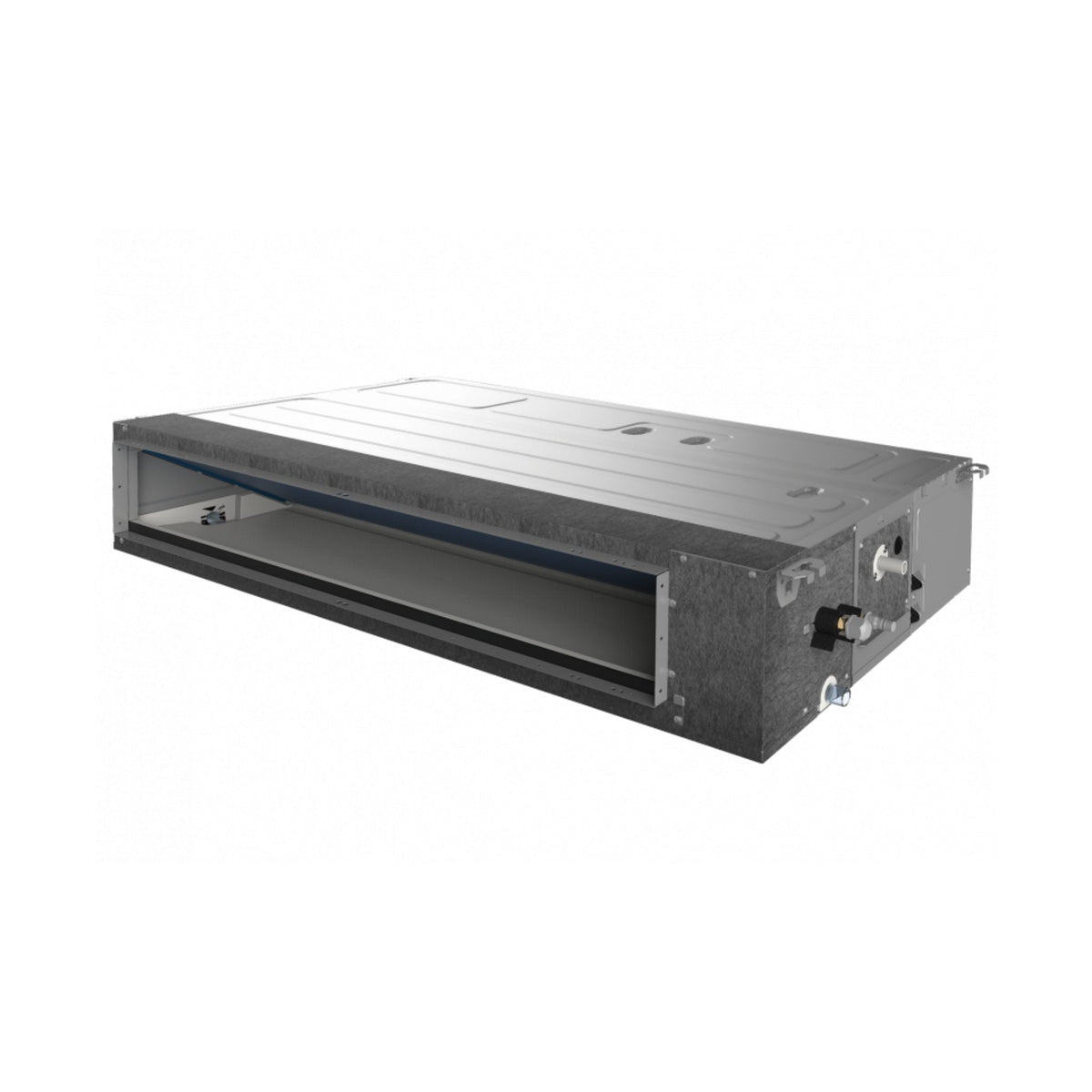

The AUX 2 Ton Concealed Duct Type Inverter Air Conditioner (Model: ALTMD-C24/NDR3MA) is a high-performance, hidden central cooling system designed for large spaces with specific aesthetic or structural constraints.Engineered to hide inside a suspended ceiling, it distributes conditioned air via ventilation duct networks to preserve a room's interior design while maximizing energy efficiency.

Slim Casing Design

•  Features an exceptionally flat chassis layout.Its compact vertical height makes it a great fit for installation in narrow ceiling plenums or low-ceiling spaces where standard ducted units cannot fit.

Automatic ESP Control

• Incorporates an Automatic External Static Pressure (ESP) adjustment function.The internal system automatically recalculates fan speed and air volume based on the resistance of your ventilation ductwork.This guarantees continuous volumetric airflow and uniform comfort, regardless of the duct installation length or complex bends.

High-Quality Inverter Rotary Compressor

•  Powered by an advanced DC inverter rotary compressor.It avoids frequent on-off power spikes by varying motor speed to perfectly match the room’s real-time load, delivering precise climate stability, quiet operation, and low electricity costs.

Adjustable Static Pressure up to 160Pa

•  Provides a wide structural static pressure range adjustable from 0 to 160 Pa. This broad discharge capacity offers engineers great flexibility when laying out and splitting long-distance ventilation branches across multiple rooms.

Flexible Air Intake & Drainage Design

•  Built to accommodate two distinct return-air paths: a standard rear air intake structure or an optional lower/bottom air intake format.It also includes dual-sided drainage connections (left and right), allowing it to adapt to diverse room layouts and interior design needs.

Eco-Friendly R32 Refrigerant Matrix

•  Runs entirely on high-efficiency, eco-friendly R32 refrigerant. Compared to older R410A standard networks, it exhibits significantly higher thermal conductivity, enhanced energy efficiency parameters, and a much lower global warming potential.

Optimized Refrigerant Piping Loop

• Engineered with an isolated piping design that structurally separates the refrigerant inlet and outlet paths.This separation optimizes the chemical flow pattern, boosts overall cooling capacity, and maintains stable system temperatures for long-term performance.

Hidden Air Conditioning

•  The indoor unit is completely concealed in the ceiling, distributing air seamlessly via hidden ventilation ducts and grills for a clean, unobtrusive look.

Wide Operating Range

• Engineered to perform reliably in demanding and extreme climates (like the UAE), maintaining stable cooling capacity even during high external temperatures.

Environmentally Friendly

•  Utilizes modern refrigerants designed for high cooling efficiency and reduced global warming potential.
